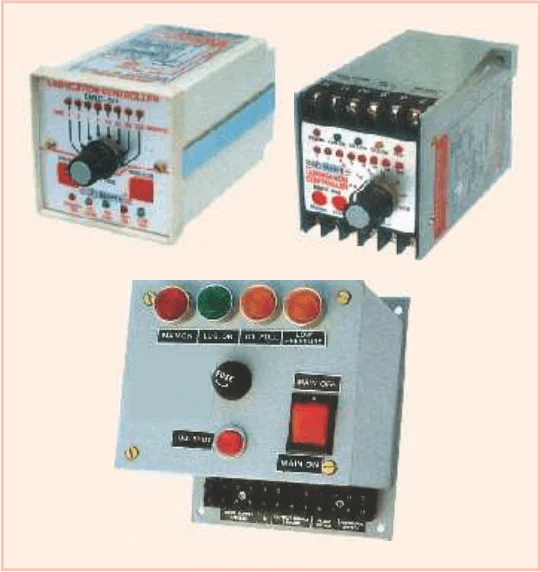

Electronic Lubrication Controllers

MODELS	Technical Specifications
ELC – 05 – 1	Panel Mounted type, ON time 5 sec.(fixed), OFF time 1, 2, 4, 8, 16, 32, 64, 128 min. can be adj. with the help of Rotary switch. 8 LED’s bar makes possible to read out the time Over with the resolution of 1 min. If the required pressure will not developed by the lub. system, the machine can be interlocked with the help of this controller. Input-110/220V.
ELC – 05 – 2	Wall Mounted type, ON time 5 sec.(fixed), OFF time 1, 2, 4, 8, 16, 32, 64,128, min. can be Adj. with the help of Rotary Switch.8 LED’s bar makes possible to read out the time over with the resolution of 1 min. If the required pressure will not developed by the lub. system, the machine can be interlocked with the help of this controller. Input-110 / 220V AC.
ELC – 05 – 3	Wall Mounted type, ON time 5 sec.(fixed) and OFF time 1, 2, 4, 6, 8, 16, 32, 64, 128 min. (Adj.) with built in contactor and push switch for manual lubrication. Input- 415V AC.
